- مانیتور اچ پی Hp Monitor Z24i
- این مانیتور از تکنولوژی روز دنیا یعنی IPS2 بهره میبرد که بصورت 24 اینچ با وضوح تصویر 1920x1200 طراحی شده است یکی از نکاتی که این مانیتور را برای کار طراحی مجزا ساخته کالیبره شدن تفکیک رنگ آن است.
مانیتور HP مدل Z24i ips
- مانیتور اچ پی 24 اینچ HP Z24i IPS LED با دقت تصویر فوق العاده، قابلیت تنظیم استثنایی، و قابلیت اطمینان حیاتی برای محیط های تجاری بهینه سازی شده است.
زاویه دید گسترده
به لطف فناوری پنل IPS Gen 2 مصرف برق خود را کاهش دهید و پوشش 99 درصدی فضاهای رنگی sRGB را در اختیار داشته باشید. سرعت تیم بررسی و تصمیم گیری مشترک با زوایای دید بسیار وسیع که به همه یک دید عالی می دهد، بسیار مشهود خواهد بود
پورت های ارتباطی
از طیف وسیعی از ورودی ها که شامل DisplayPort 1.2، DVI، VGA و هاب USB یکپارچه می شود، لذت ببرید. مانیتور HP Z24i جهت افزایش کارایی نمایشگر دارای یک عدد پورت تصویر VGA، یک عدد پورت DVI-D و یک عدد پورت DisplayPort می باشد همچنین دارای پورت USB-HUB برای ارتقاء پورت های USB و 4 عدد پورت USB2.0 برای شارژ و اتصال و انتقال تصویر از دستگاه های جانبی به مانیتور است.
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
1. Menu Opens, selects or exits the OSD menu. 4. OK/Auto If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu
is inactive, press to activate the auto
adjustment feature to optimize the screen
image.
2. Minus “-“ If the OSD menu is on, press to navigate 5. Power/Power Turns the monitor on or off.
backward through the OSD menu and LED LED:
decrease adjustment levels. fully powered = white;
sleep mode = amber;
sleep timer mode = flashing amber.
3. Plus”+”/Input If the OSD menu is on, press to navigate
forward through the OSD menu and
increase adjustment levels.
If the OSD menu is inactive, press to
activate the source button that chooses
the video signal input (VGA, DVI, or
DisplayPort).
Models: D7P53A4, D7P53A8, D7P53AS, D7P53AT
Panel Type 24-inch IPS Gen 2, LED Backlit
Viewable Image Area 60,96 cm (24 in) widescreen; diagonally measured
(diagonal)
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 1
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
Panel Active Area 51,84 x 32,4 cm (20.4 x 12.75 in.)
(W x H)
Panel Type Gen 2 IPS (Gen 2 technology, also called AH-IPS, enables lower power
consumption).
Resolution 1920 x 1200 @ 60 Hz
Aspect Ratio 16:10
Viewing Angle Up to 178° horizontal/178° vertical (10:1 minimum contrast ratio)
(typical)
Brightness (typical)* 300 cd/m2
Contrast Ratio 1,000:1
(typical)*
Dynamic Contrast 5,000,000:1
Ratio (typical)*
Response Time 8 ms gray to gray
(typical)*
Pixel Pitch 0.270 mm
Backlight Lamp Life 30,000 hours minimum
(to half brightness)
Color Support** 16.7 million colors
Color Gamut
Size vs. NTSC (CIE 72%
1931)
Coverage of sRGB 99%
(CIE 1976)
*All performance specifications represent the typical specifications provided by HP’s component
manufacturers; actual performance may vary either higher or lower.
** With the use of FRC technology.
User Controls Buttons or Switches Menu, Minus (“-“), Plus (“+”) /Input, OK/Auto, Power
Languages 10 (English, Spanish, German, French, Italian, Netherlands, Portuguese,
Japanese, T-Chinese and S-Chinese)
On Screen Display Brightness, Contrast, Color, Image Control, OSD control, Management,
(OSD) User Controls Language, Information, Factory Reset, Input Control
Signal Interface/ Horizontal Frequency24-94 kHz
Performance Vertical Frequency 50.76 Hz
Native Resolution 1920 x 1200 @ 60 Hz
Preset VESA Graphic 640 x 480 @ 60Hz
Modes (non- 720 x 400 @ 70 Hz
interlaced) 800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 1024 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 2
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
Maximum Pixel Clock200 MHz
Speed
User Programmable Yes, 20
Modes
Anti-Glare Yes
Default Color 6500 K
Temperature
Video/Other Inputs Plug and Play Yes

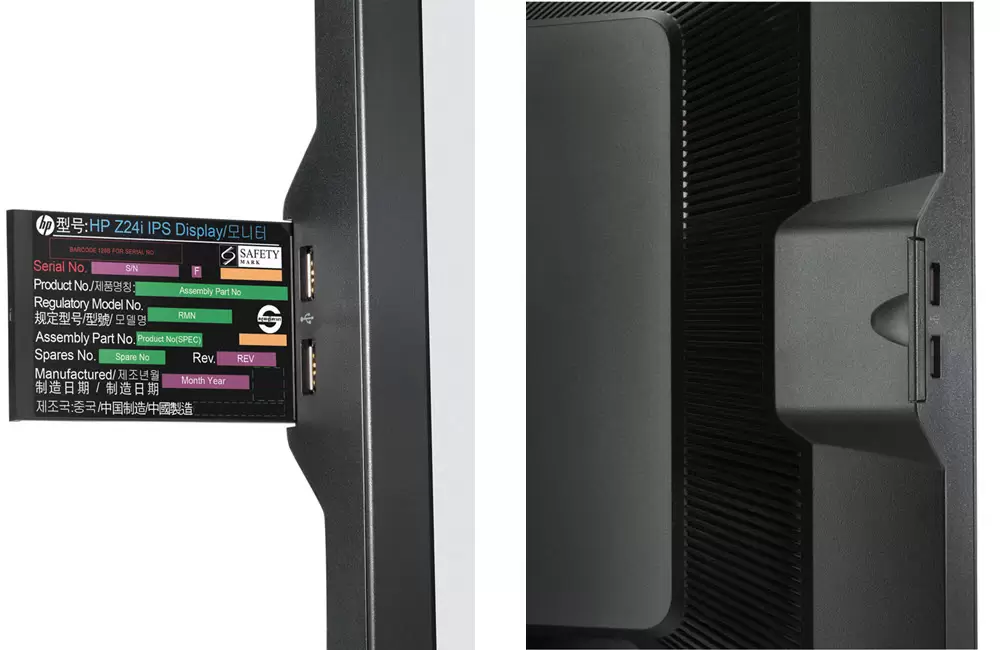

Self Powered USB One upstream, four downstream ports (cable included)
2.0 Hub
Input Connectors 1 VGA, 1 DisplayPort 1.2 (1.1 compatible), 1 DVI-D; HDCP support on
DisplayPort and DVI
Sync Input Separate synch
Video Cables (1) DVI-D 1,8 m (5.9 ft), (1) DisplayPort 2 m (6.56 ft)
Included
Power Power Supply Internal
Input Power 90 – 265 VAC at 45 – 63 Hz
ENERGY STAR® 25.4 W
Power1
Default Power2 36 W
3
Maximum Power 55 W
Sleep/Off Mode > 0.5 W
Power
Power Cable Length 1,9 m (6.2 ft)
Mechanical Dimensions (W x D x Unpacked w/stand 55,94 x 23,79 x 52,5 cm
H) (highest setting) (22.02 x 9.37 x 20.67 in)
Unpacked w/o stand 55,94 x 6,45 x 36,5 cm
(head only) (22.02 x 2.54 x 14.37 in)
Packaged 66 x 45 x 30,1 cm
(25,98 x 17.72 x 11.85 in)
Weight Head Only 4,73 kg (10.43 lbs)
Unpacked 6,96 kg (15.35 lbs)
Packaged 9,14 kg (20.15 lbs)

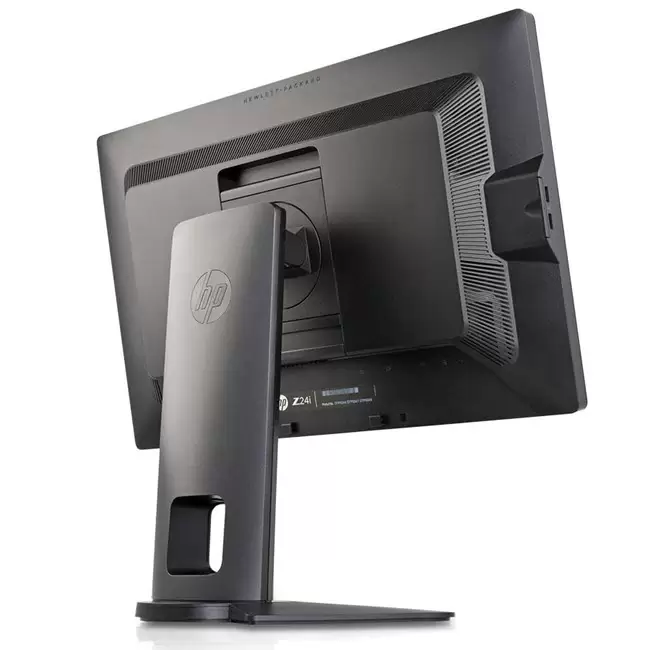

Ergonomic Features 4-Way Comfort Easily adjust the display in height, tilt, swivel and pivot for maximum
Adjust comfort.
Integrated Quick An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows
Release5 you to quickly and securely attach an LCD monitor to a variety of stands,
brackets, arms or wall mounts.
Cable Management Enhanced cable management for easy concealment of power, video and
USB cables. Effortless routing of cables through the cable management
tunnel at the base of the column.
Detachable Stand Yes, ships detached
Tilt Range -5° to + 30° vertical
Swivel Range 45°L to 45°R
Height Adjustable Yes, 0 to 120 mm

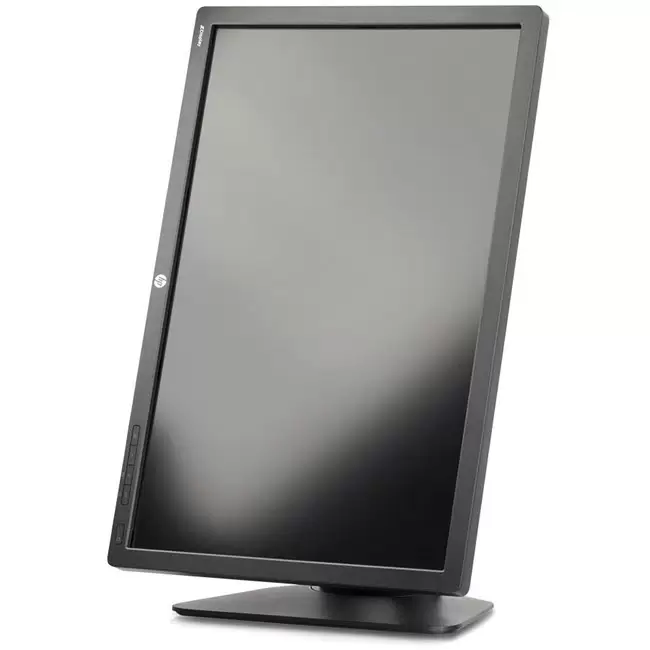

Pivot Rotation Yes
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 3
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
Environmental Temperature – 5° to 35° C (41° to 95° F)
Operating
Temperature – Non- -20° to 60° C (-4° to 140° F)
operating
Humidity – Operating 20% to 80% non-condensing
Humidity – Non- 5% to 95%, 38.7° C max wet-bulb
operating
Altitude – Operating 0 to 5,000 m (16,404 ft)
Altitude – Non- 0 to 12,192 m (0 to 40,000 ft)
operating
White LED Yes
Backlights
CCFL Panel No
Arsenic-Free Display Yes
Glass
Low Halogen4 Yes
Mercury-Free Display Yes
Backlighting
Environmental Data Eco-Label This product has received or is in the process of being certified to the
Certifications & following approvals and may be labeled with one or more of these marks:
declarations
IT ECO declaration
US ENERGY STAR®
TCO 06
EPEAT® Gold where HP registers Commercial Display products. See
http://www.epeat.net for registration status in your country US Federal
Energy Management Program (FEMP)
Energy Consumption 115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
(in accordance with
US ENERGY STAR®
test method)
Normal Operation 15.57 W 15.51 W 15.7 W
Sleep 0.16 W 0.22 W 0.15 W
Off 0.15 W 0.2 W 0.14 W
Heat Dissipation* 115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation 53 BTU/hr 53 BTU/hr 53 BTU/hr
Sleep 1 BTU/hr 1 BTU/hr 1 BTU/hr
Off 1 BTU/hr 1 BTU/hr 0.4 BTU/hr
* Heat dissipation is calculated based on the measured watts,
assuming the service level is attained for one hour.
Additional This product is in compliance with the Restrictions of Hazardous
Information Substances (RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 4
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
at the Gold level, see: www.epeat.net
Plastics parts weighing over 25 grams used in the product are
marked per ISO 11469 and ISO1043.
This product contains 17.7 % post-consumer recycled plastic (by wt.)
This product is 98.50% recycle-able when properly disposed of at end
of life.
Packaging Materials External: PAPER/Corrugated 1265 g
Internal: PLASTIC/EPS (Expanded 450 g
Polystyrene)
PLASTIC/Polystyrene High 55 g
Impact
RoHS Compliance Hewlett-Packard is committed to compliance with all applicable
environmental laws and regulations, including the European Union
Restriction of Hazardous Substances (RoHS) Directive. HP’s goal is to
exceed compliance obligations by meeting the requirements of the RoHS
Directive on a worldwide basis. By July 1, 2006, RoHS substances will be
virtually eliminated (virtually = to levels below legal limits) for all HP
electronic products subject to the RoHS Directive, except where it is widely
recognized that there is no technically feasible alternative (as indicated by
an exemption under the EU RoHS Directive).
Material Usage This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment
at: http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging HP follows these guidelines to decrease the environmental impact of
product packaging:
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 5
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
End-of-life Hewlett-Packard offers end-of-life HP product return and recycling programs
Management and in many geographic areas. To recycle your product, please go to:
Recycling http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/recyclers. These instructions
may be used by recyclers and other WEEE treatment facilities as well as HP
OEM customers who integrate and re-sell HP equipment.
Hewlett-Packard For more information about HP’s commitment to the environment:
Corporate
Environmental Global Citizenship Report
Information http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
Options HP Thin Client Mount Attach your HP Thin Client or USDT PC to the back of select HP Z Displays
For more information Kit—Part number and maintain optimal ergonomic adjustability with the HP Thin Client Mount
refer to the product’s E5J35AA Kit. Simply mount an HP Thin Client to the Kit’s VESA plate, slide it into
QuickSpecs. place on the back of an HP Z24i, Z27i or Z30i IPS Display stand, and you’re
ready to go.
HP Dual Output USB Create a dual-monitor setup with the HP Dual Output USB Graphics Adapter
Graphics – featuring both DVI-I and DisplayPort inputs to drive displays at high
Adapter—Part resolutions through a single USB 3.0 connection to your PC.
number C5U89AA
HP LCD Speaker Powered directly by the monitor or the PC, the Speaker Bar seamlessly
Bar—Part number attaches to the monitor’s lower bezel to bring full audio support to select HP
NQ576AA LCD monitors. Features include dual speakers with full sound range and
external jack for headphones. Sold separately.
HP Business PC Attaches to the rear of the PC with a six-foot steel cable that can be used to
Security Lock secure a PC or peripherals such as mice, keyboards, monitors or USB
Kit—Part number security devices to protect them against unauthorized removal by physically
PV606AA connecting the system to an anchor point.
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 6
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
HP Integrated Work Allows mounting of a 17 – 24 inch diagonal HP LCD monitor and an HP
Center Stand – USDT Compaq dc8000 series Ultra-slim Desktop PC as well as select HP Thin
and Thin Clients) Clients on a single stand for the convenience of an “all-in-one” form factor.
—Part number
LH526AA
HP Integrated Work Designed specifically for use with the HP Compaq Small Form Factor (SFF)
Center 2 – Small Desktop PC and a 17 to 24-inch (43.18 to 60.96 cm) diagonal monitor, the
Form Factor (SFF) HP Integrated Work Center 2 (IWC) – Small Form Factor (SFF) provides a
—Part number portable, compact workspace to help maximize space-constrained work
QP897AA environments. (17 to 24-inch diagonal monitors need to meet supported
weight limits of 7.5 to 12.1 lbs. (3.38 to 5.5 kg).
HP Single Monitor The flexible design of the HP Single Monitor Arm provides a seemingly
Arm—Part number endless range of display adjustments with an amazing 13 inches of lift, 50
BT861AA degrees of tilt, and 360 degrees of pan and rotation – all at your fingertips —
helping you stay comfortable and productive throughout the day.
HP Adjustable Dual Premium space-saving dual screen solution provides access to more
Display Stand—Part monitor real estate and makes it possible to manage multiple applications
Number AW664AA simultaneously. Weight adjustable for dual monitors from 17-24″. Rotate
displays into portrait/landscape positions.
HP DisplayPort Cable Connects a DisplayPort connector on an HP Business Desktop computer to
Kit—Part number a DisplayPort connector on a monitor
VN567AA
HP Display and Use two displays at once to increase productivity – your notebook display,
Notebook plus one external display up to 24 inches in size. The adaptable design of
Stand—Part number the HP Adjustable Display Stand can accommodate a range of notebook
AW662AA sizes with the innovative adjustable shelf.
HP Adjustable Turn your HP Business Notebook into a desktop solution supporting up to a
Display Stand—Part 24 inch display. A dual-hinged, smooth-motion display stand allows for
number AW663AA greater depth, height and tilt adjustment for maximum comfort.
What’s in the box? Monitor and HP Z24i 24-inch IPS Display, AC power cord, USB cable, DisplayPort cable
Accessories
Documentation CD (includes user guide, warranty, drivers)
Featured Software HP Display Assistant is a software utility that enables theft deterrence and
allows monitor adjustment, color calibration, and security/asset
management using the Display Data Channel Command Interface (DDC/CI)
protocol of the connected PC or workstation.
Other User Guide English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish,
Languages French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean,
Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish,
Swedish and Turkish.
Warranty Languages English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish,
French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean,
Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish,
Swedish and Turkish.
Color Black
VESA External Yes (one set of standard 4-hole pattern, 100 mm). Use of the top VESA 4-
Mounting hole pattern will allow the user to set monitor head lower to the desk
surface.
Security Lock-Ready Yes
Country of Origin China
DA – 14672 Worldwide QuickSpecs — Version 6 — 7/10/2014 Page 7
QuickSpecs HP Z24i 24-inch IPS Display
Technical Specifications
Certification and CE, CB, KC, KCC, NOM, PSB, ICE, TUV-S, CCC, TCO Certified, CEL Grade 1, CECP, SEPA,
Compliance EPA, ISC, VCCI, FCC, HSMI, Microsoft WHQL Certification (Windows 8 and Windows 7),
ENERGY STAR® Qualified, EPEAT® Gold6.
Compatibility Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.
Service and WarrantyProtected by HP, including a 3 year standard limited warranty. Optional HP Care Pack Services are
extended service contracts that extend your protection beyond the standard warranties.7
© Copyright 2014 Hewlett-Packard Development Company, L.P.
ENERGY STAR is a registered mark owned by the U.S. government. All specifications represent the typical specifications
provided by HP’s component manufacturers; actual performance may vary either higher or lower. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
1. ENERGY STAR® power is measured with factory defaults, brightness at ENERGY STAR® level of 200 cd/m2 and with
no USB loads.
2. Default Power is measured with factory defaults, including factory default brightness and USB ports loaded at 25% of
maximum.
3. Maximum Power is measured with monitor at maximum brightness and with USB ports loaded at 100% of maximum.
4. External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after
purchase may not be Low Halogen.
5. The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted.
Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners
are not supplied (other than the VESA-compliant screws). HP recommends that you consult with a qualified engineering,
architectural or construction professional to determine the appropriate type and quantity of mounting fasteners required
for your application and to ensure that your mounting solution is properly installed to support applied loads.
6. EPEAT® Gold where HP registers commercial display products. See www.epeat.net for registration status in your
country.
7. Service levels and response times for HP Care Pack Services may vary depending on your geographic location. Service
starts from date of hardware purchase. Restrictions and limitations apply. See www.hp.com/go/cpc for details.
نقد و بررسی وجود ندارد.
